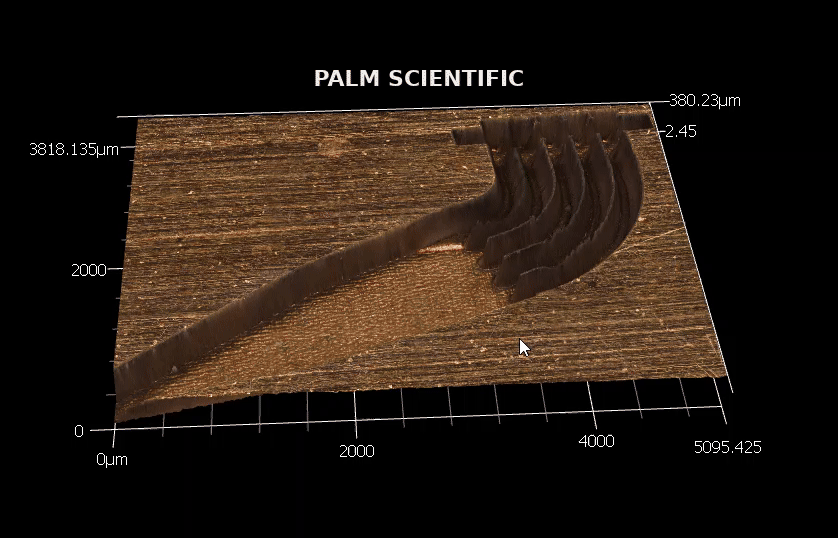

Animated 3D surface metrology of a multi-channel laser-machined structure

Precision ablation laser machining

Fabrication for problems that do not come with a process recipe.

PALM Scientific develops controlled laser microfabrication processes for difficult materials, demanding geometries, and research-grade components.

Multi-channel waveguide structure3D surface metrology

Selected work / Portfolio

Structures shaped around function.

A growing portfolio of components, process-development challenges, and unusual geometries. Each example connects fabrication choices to the problem being solved.

Component handling / loopPALM Scientific

X-Ray FEL / Diamond

20 µm Tapered Diamond Membrane

A tapered membrane machined into a 5 x 5 mm diamond plate, with remaining material thickness as low as 20 microns.

Material
Diamond
Plate size
5 x 5 mm
Geometry
Tapered membrane
Thickness
Down to 20 µm
Application
Semi-transparent X-ray FEL outcoupling mirror

Manufactured for X-ray free-electron laser outcoupling optics where extreme thinning and controlled geometry must coexist in a single diamond component.

Technical result

Built for XFELO outcoupling, this diamond optic was tapered by laser ablation to a membrane as thin as 20 µm while preserving the crystal structure of the remaining material. The result combines controlled X-ray transmission with the crystalline integrity required for oscillator optics.

Why outcoupling matters in an X-ray laser oscillator
Microscope scan / 100 µm scale

Subsurface Processing / Diamond

True 3D Graphitic Wiring Inside Diamond

Femtosecond laser pulses are focused inside bulk diamond, with optical aberrations compensated for the material's high refractive index. The process parameters are tuned to locally convert diamond into graphite, enabling conductive paths to be written within the crystal in true three dimensions.

The microscope video follows a focal sweep through the diamond. One grid of parallel horizontal wires appears 50 µm above a second grid with the same 50 µm periodicity.

Material
Diamond
Structure
Buried conductive graphite wires
Geometry
Two vertically separated wire grids
Periodicity
50 µm
Layer separation
50 µm
Process
Aberration-compensated femtosecond laser writing
Finished diamond feature / 1 mm diameter

Diamond Micromachining / Precision Finishing

1 mm Hemispherical Form in Diamond

A 1 mm-diameter hemispherical form was laser-ablated directly into a diamond plate, then polished to refine the machined surface. The result combines controlled three-dimensional material removal with a secondary finishing step on a compact diamond geometry.

The video shows the finished hemispherical feature on the diamond plate and its scale relative to the handling tools.

Material
Diamond
Feature diameter
1 mm
Geometry
Hemispherical form
Primary process
Precision laser ablation
Finishing
Post-ablation polishing
Diamond anvil / blind-hole machining

High-Pressure Research / Diamond

Blind-Hole Diamond Anvil for X-Ray Experiments

Diamond anvils use opposing diamond tips to compress microscopic samples to extreme pressures while retaining optical and X-ray access to the sample. For this anvil, PALM laser-machined a blind hole into the table to shorten the X-ray path through diamond and reduce absorption during experiments at X-ray light sources.

Component
Diamond anvil
Feature
Blind hole through the table
Purpose
Reduced X-ray absorption
Environment
High-pressure X-ray experiments
Finishing
Polished hole bottom

The bottom of the blind hole was polished to preserve optical access for temperature measurements, including the ruby-based measurement used in the research setup.

Surface map / loopPALM Scientific

Terahertz / Sapphire

500 GHz Moth-Eye Transmission Filter

Periodic microstructures laser-ablated directly into a sapphire wafer for narrow-band transmission near 500 GHz.

Material
Sapphire
Application
Narrow-band THz transmission
Center frequency
500 GHz
Process
Precision laser ablation
Validation
3D surface metrology

Process details can be developed around material response, target geometry, and functional test requirements.

Method & Company

An integrated precision fabrication environment.

PALM Scientific operates a purpose-built laser microfabrication laboratory with femtosecond, picosecond, nanosecond, and millisecond laser systems spanning the ultraviolet, visible, and infrared. Together, these systems support precision ablation, laser polishing, marking, surface finishing, and welding. Rather than relying on a single general-purpose workstation, PALM integrates precision motion, deterministic laser synchronization, in-line metrology, environmental control, and material-specific finishing into each fabrication process.

01

Controlled fabrication

Temperature-controlled work envelopes, nanometer-resolution position feedback, interferometric alignment methods, and continuous stability tracking support long-duration fabrication of demanding geometries.

02

Deterministic pulse placement

Motion, beam steering, and laser firing are synchronized through deterministic control architecture. Individual ablation events can be placed according to measured position—not merely elapsed time or nominal motion commands.

03

Measurement-driven correction

In-line measurements and independent surface metrology compare machining results with the target geometry, reveal systematic deviations, and guide corrective operations.

04

Fabrication through finishing

Laser processing is integrated with chemical-mechanical polishing, laser welding, custom fixturing, multi-material brazing, precision grinding and lapping, and polishing processes tailored to each material and required surface. This allows PALM to carry a component from initial machining through dimensional correction, assembly, and final finishing within a single fabrication workflow.

Deterministic motion-synchronized processing

Every pulse has a position. Every surface has a measured residual.

Laser emission, sample motion, and optical positioning are coordinated through hardware-level triggering and position-aware control. Each ablation event is tied to a known stage or optical position, providing controlled crater placement during continuous motion without depending on software timing alone.

Individual laser pulses during synchronized ablation

Position-aware control

Controlled triggering turns each laser firing event into a spatially registered machining process rather than a loosely timed sequence of laser commands.

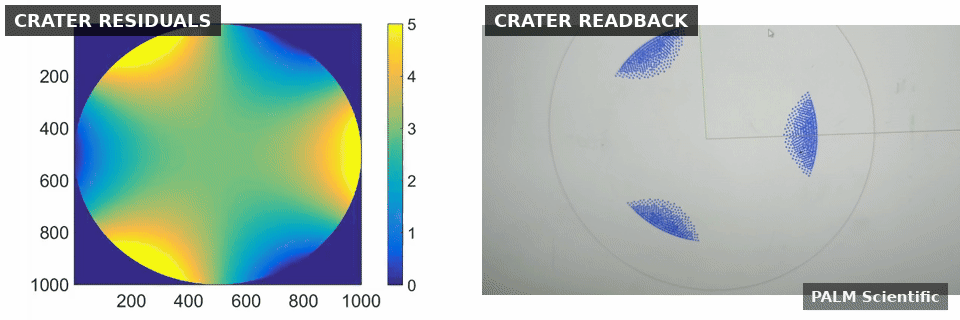

Synchronized comparison of crater residuals converging and measured crater positions accumulating
Residual convergence and crater-position readback shown over the same control cycle

Multi-scale surface metrology

Measurement is part of the fabrication loop.

Laser-scanning and focus-variation microscopy provide three-dimensional measurements from individual laser features through millimeter-scale surfaces. Measurements support final inspection and provide feedback for corrective machining.

  • Surface topography and roughness
  • Form and profile error
  • Feature depth and diameter
  • Edge and sidewall geometry
  • Registration between features
  • Comparison with nominal geometry

The physics behind the method

Built from an experimental-physics perspective.

PALM Scientific was founded by Sergey Antipov, an experimental accelerator physicist. The laboratory's fabrication systems reflect that background: precision synchronization, interferometric alignment, stability measurement, custom instrumentation, and quantitative validation are treated as integral parts of the process.

We build experimental systems to solve fabrication problems—especially when the material is difficult, the geometry is unfamiliar, or the project begins before a manufacturing recipe exists.

Sergey Antipov on LinkedIn

Customers & Validation

Work that stands up in demanding research environments.

PALM Scientific has supported national laboratories, accelerator facilities, universities, and commercial organizations across precision fabrication and research programs.

National Laboratories & Research Facilities

  • Lawrence Livermore National Laboratory
  • SLAC National Accelerator Laboratory
  • Argonne National Laboratory Advanced Photon Source (APS) · Argonne Wakefield Accelerator (AWA)
  • Brookhaven National Laboratory Accelerator Test Facility (ATF) · National Synchrotron Light Source II (NSLS-II)
  • Sandia National Laboratories
  • Carnegie Science
  • European Synchrotron Radiation Facility
  • Korea Basic Science Institute
  • Pohang Accelerator Laboratory
  • MAX IV Laboratory
  • Deutsches Elektronen-Synchrotron

Universities

  • University of Rochester
  • Stony Brook University
  • Johns Hopkins University
  • Texas A&M University
  • University of Illinois Urbana-Champaign
  • Iowa State University
  • Friedrich Schiller University Jena

Companies

  • Multiple commercial projects under NDA
  • JJ X-Ray
  • RadiaBeam
  • MANTECH
  • Almax easyLab

Start a Project

Bring the geometry, material, or measurement problem.

A useful first note includes the material, target geometry, quantity, critical dimensions, and how success will be measured. Confidential discussions and NDA-based work are welcome.
